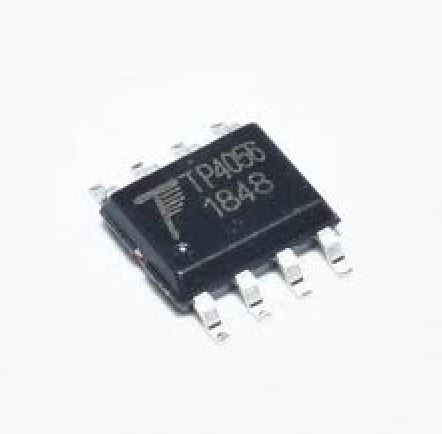

- DescriptionLi-Ion battery charge controller TP4056 (TC4056A) is used in autonomous linear chargers for lithium-ion and lithium-polymer batteries, with an adjustable charge current up to 1 A with thermal protection in an SOP 8 case. Maximum charge current – 1A, charge voltage – 4.2V, there is an input for connecting a battery overheating sensor.TP4056 is a complete linear charger for one cell of lithium-ion battery. Its SOP structure and few external components make the TP4056 ideal for portable devices. In addition, TP4056 can work in USB adapters.SPECIFICATIONSName : TP4056;Case : SOP-8;Mounting type : SMD;Description : Linear DC / DC charger for single cell lithium-ion batteries;Battery type : Li-Ion;Supply voltage (input voltage) (min) : 4 V;Supply voltage (input voltage) (max) : 8 V;Output voltage (max) : 4.2;Maximum output current (charge) (max) : 1 A;Number of battery cells (Number of cells) : 1;Minimum operating temperature (tmin) : -40 ° C;Maximum operating temperature (tmax) : 85 ° C. Package includes: 1×TP4056 1A SOP-8 linear lithium-ion battery charger chip
