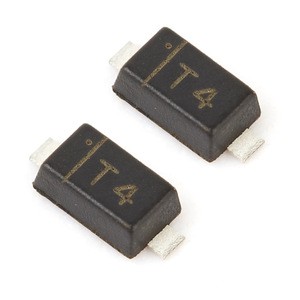

- DescriptionThe 1N4148 series is the most famous switching diode in electronics history. The SOD-523 version represents the absolute peak of miniaturization for this legendary component. Designed specifically for processing high-speed signals in ultra-compact modern devices, it is an essential component for digital logic routing, rapid signal steering, and transient clamping.Ultra-Fast Reverse RecoveryThe defining feature of the 1N4148 is its incredible speed. With an ultra-fast reverse recovery time (trr) of less than 4ns, it prevents signal corruption in high-frequency data lines. This ensures your SPI communications, high-speed logic routing, and analog sensor signals remain crisp and accurate without waveform distortion or data bleed-over.Microscopic SOD-523 FootprintTo push the boundaries of modern electronics, this version is housed in an ultra-miniature SOD-523 surface-mount package. Significantly smaller than both the MiniMELF and SOD-123 packages, it provides incredible space savings for high-density boards, wearables, and micro-robotics. The cathode is easily identifiable by the band printed on the casing, ensuring correct orientation during automated pick-and-place assembly or precision manual soldering.Key FeaturesUltra-Miniature Footprint: The SOD-523 package provides massive space savings for high-density, compact PCB layouts.High-Speed Switching: A <4ns recovery time prevents signal corruption in fast digital logic and communication circuits.Logic-Level Protection: Excellent for shunting minor high-speed voltage spikes away from delicate IC inputs in tight spaces.Technical SpecificationsComponent Type: Fast Switching Signal DiodeMaximum Repetitive Reverse Voltage (VRRM): 100VContinuous Forward Current (IF): 150mAPeak Forward Surge Current (IFSM): 2.0A (for a 1µs pulse)Reverse Recovery Time (trr): < 4nsMaximum Forward Voltage Drop (VF): 1.25V at 150mAPower Dissipation (PD): 150mWPackage Type: SOD-523 (Ultra-Miniature Surface Mount)Ideal ApplicationsWearable Electronics: Signal steering and logic protection in ultra-compact fitness trackers, smartwatches, and medical devices.High-Density Logic: Constructing discrete AND/OR diode logic arrays on space-constrained custom controllers.Transient Clamping: Shunting minor high-speed voltage spikes to protect delicate microcontroller inputs on crowded logic boards.Electronics Repair: Replacing faulty micro-signal diodes in modern ultra-thin laptops, tablets, and smartphones.
