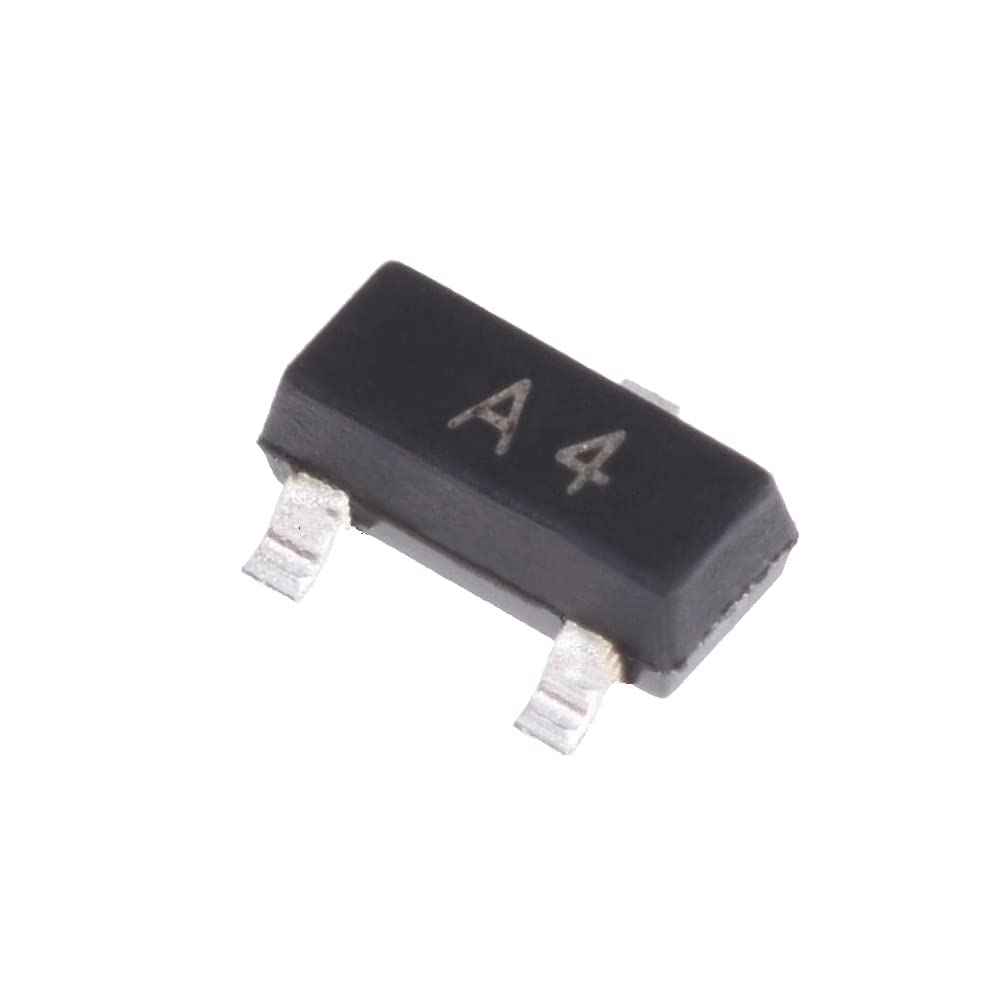

- DescriptionIn modern digital and mixed-signal electronics, protecting signal lines and routing data paths efficiently requires specialized components. The BAV70 Switching Diode is an ultra-fast, dual-element component engineered to handle rapid signal transitions without introducing lag or distortion into your circuits.The Common Cathode AdvantageInstead of using two separate discrete diodes, the BAV70 integrates two high-speed diodes into a single tiny package, with their cathode terminals internally tied together. This specific configuration is incredibly useful. It allows you to easily build logic “OR” gates, clamp transient voltages to a single ground reference, and route power from two separate sources without allowing them to back-feed into one another—all while taking up half the PCB footprint.Ultra-Fast 4ns RecoveryThe defining feature of the BAV70 is its speed. Standard rectifiers take a relatively long time to “turn off” when the voltage reverses, which can corrupt high-frequency digital signals like SPI or I2C data lines. With a maximum reverse recovery time (trr) of just 4ns, the BAV70 clamps and switches almost instantly, ensuring your high-speed logic lines remain clean and protected.Circuit Best PracticesWhile the BAV70 is incredibly fast, it is intended for small-signal applications rather than heavy power routing. It is rated for a continuous forward current of 215mA. If you are using it for redundant power supply steering (e.g., switching between a USB 5V line and a battery), ensure that your circuit’s total current draw does not exceed the thermal limits of the SOT-23 package.Key FeaturesLightning-Fast Switching: A 4ns recovery time prevents signal corruption in high-speed digital data lines.Dual-Diode Integration: The common cathode topology reduces part count and simplifies PCB layout for logic clamping.Miniature Footprint: The SOT-23 SMD package optimizes valuable board real estate for compact IoT and wearable designs.Technical SpecificationsComponent Type: High-Speed Switching DiodeInternal Configuration: Dual, Common CathodeMaximum Repetitive Peak Reverse Voltage (VRRM): 70VContinuous Forward Current (IF): 215mAPeak Forward Surge Current (IFSM): 500mA (for 1 second)Reverse Recovery Time (trr): 4ns MaximumPower Dissipation (PD): 250mWPackage Type: SOT-23 (Surface Mount)Top Marking Code: A4Ideal ApplicationsHigh-Speed Signal Clamping: Protecting delicate microcontroller input pins from transient voltage spikes.Logic Steering: Building simple, space-efficient diode “OR” logic gates.Redundant Power Routing: Safely merging two low-current power sources (like a battery and a wall adapter) without back-feeding.Electronics Repair: Replacing faulty A4-marked dual diodes in commercial logic boards and communication arrays.
